DATALOGIC 93A301067 Connection Box Compact, Industrial Black/Blue/Gray

Manufacturer #:93A301067

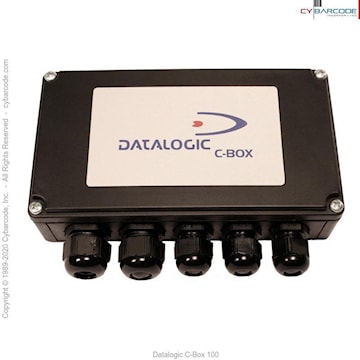

The Datalogic C-BOX 100 in a connection box that is used by Datalogic scanners as a way to facilitate the connection of scanner signals. The scanner is connected via a 25-pin connection on the side of the C-Box 100 unit. The C-Box Line is equipped with an internal terminal block made of practical spring clamps and 5 external cable glands for easy cabling operations. All models have an internal standard D-Shell 9 pin connector to access the auxiliary service interface of the scanner.


Brand Name Datalogic Item Name Connection Box
Type Compact, Industrial Length 128 mm
Width 137 mm Depth 62 mm
Color Black/Blue/Gray Series/Model CBX100
NEMA Rating NEMA 4 Temperature Rating 0 to 50 °C
For Use With DS2100N, DS2400N, DS4800, DS6300, DS6400, DX6400, DS8100A, DX8200A, Matrix-2000™, Matrix 200™, Matrix 400™ Barcode Scanner and Reader Standards EN 60068-2-27, EN 60068-2-6, IP65 (NEMA 4)
Application For Manufacturing, Shop Floor, Warehousing
