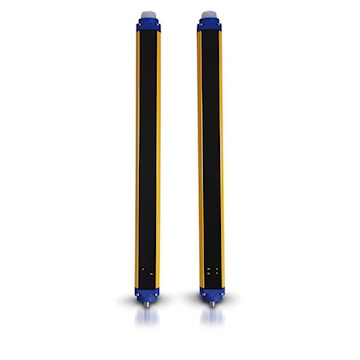

DATALOGIC USA INC DATASENSING 957851300 Safety Light Curtain 4 Beams 6 - 60 m Sensing range
dat957851300
DATALOGIC USA INC DATASENSING 957851300 Safety Light Curtain 4 Beams 6 - 60 m Sensing range
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:957851300
Description
SG body big base SG body big muting. Robust housing for harsh environments. Long operating range for perimeter control. Rapid solution for access control with muting. Easy installation and alignment. 2, 3, 4 beams for body protection. 40 mm resolution for arm protection and presence detection. Controlled heights 500, 800, 900 and 1200 mm. Long operating distance: up to 60 m. Simple configuration through DIP switches. Integrated muting lamp (only muting models). Anti-interference coding. External muting enable signal. Edged or triggered muting dependent override.
Specifications
| Brand Name | Datalogic | Item Name | Safety Light Curtain |
| Type | Multiple Beam, Type 4 | Nominal Sensing Distance | 6 - 60 m |
| Voltage Rating | 24 VDC | Output Type | 2 PNP |
| Number of Beams | 4 | Response Time | 11 - 24 Millisecond |
| Protective Height | 900 mm | Series/Model | SG4-B4-090-OO-E |
| Amperage Rating | 0.5 A | Resolution | 319.75 mm |
| Dimensions | 1006.35 mm L x 52 mm W x 56.9 mm H | Material | Painted Aluminum, Polybutylene Terephthalate |
| Degree of Protection | IP65 | Temperature Rating | 0 - 55 °C |
| Environmental Conditions | 15 - 95% Humidity | Standards | CE Certified, TDV, cULus Listed |
| Application | Automatic Machines, Robots, Automatic Assembling Lines, Palletizers and Depalletizers, Automatic Warehouses, Protecting Perimeter Areas, Material Handling |
