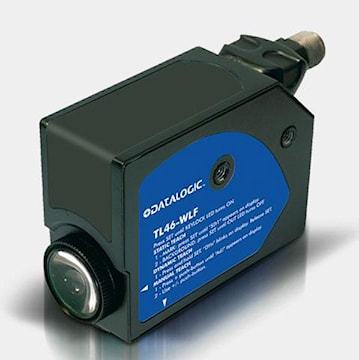

DATALOGIC USA INC DATASENSING 954601120 Photoelectric Sensor Low Jitter, Horizontal Spot
dat954601120
DATALOGIC USA INC DATASENSING 954601120 Photoelectric Sensor Low Jitter, Horizontal Spot
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:954601120
Description
High performance contrast sensor for colored registration mark detection. Fastest and accurate low jitter model. Very low jitter down to 7 us. Wide-spectrum RGB or white LED emission. 5 different models: basic, standard, enhanced, low jitter, color mode. Automatic, manual and dynamic settings. 10, 15, 20, 30 or 50 kHz switching frequencies. NPN/PNP and analog outputs. Standard mounting, M12 connector rotatable to 5 positions. Suitable for packaging and labeling machinery, beverage/food/cosmetic/pharmaceutical industries, printing machinery, flexographic printing machinery.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Low Jitter, Horizontal Spot | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Light/Dark | Sensing Distance | 9 mm |
| Output | 100 mA | Light Source | 465 nm Blue LED/520 nm Green LED/630 nm Red LED |
| Connection Type | 5-Pin M12 Connector | Response Time | 10 Microsecond |
| Material | Aluminum Housing, Glass Lens | Series/Model | TL46/TL46-WJ-815L |
| Sensing Mode | Contrast/RGB LED | Frequency Rating | 50 kHz |
| Circuit Type | PNP | Indicator Type | Yellow LED (Output), Green LED (Ready), Orange LED (Delay and Keylock) |
| Degree of Protection | IP67 | Mounting | Standard |
| Temperature Rating | -10 to 55 °C | Environmental Conditions | -25 to 70 °C Storage |
| Dimensions | 31 mm L x 81 mm W x 58 mm H | Standards | CE Marked, cULus Listed |
| Application | Packaging and Labeling Machinery, Beverage/Food/Cosmetic/Pharmaceutical Industries, Printing Machinery, Flexographic Printing Machinery |
