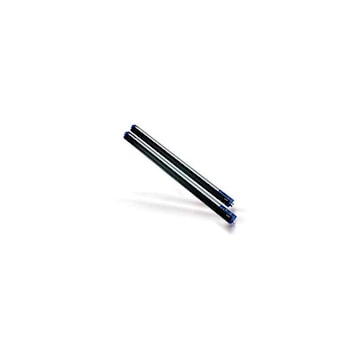

DATALOGIC USA INC DATASENSING 957501090 Light Grid 21 Beams 0.3 - 5 m Sensing range
dat957501090
DATALOGIC USA INC DATASENSING 957501090 Light Grid 21 Beams 0.3 - 5 m Sensing range
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:957501090
Description
AREAscan™ detection and measurement light grid with serial or Ethernet interface. 6 or 25 mm resolution. Relative measurement precision ± 6 mm or ± 22.5 mm. 1323 mm controlled heights. Operating distance up to 10 m. PNP and 0 to 10 V Analog output and RS485 or Ethernet interface.
Specifications
| Brand Name | Datalogic | Item Name | Light Grid |
| Nominal Sensing Distance | 0.3 - 5 m | Voltage Rating | 24 VDC |
| Output Type | PNP, Analog | Number of Beams | 21 |
| Light Source | 880 nm Infrared LED | Response Time | 5 - 90 Millisecond |
| Protective Height | 150 - 1650 mm | Amperage Rating | 100 mA |
| Resolution | 6 mm | Connection | M12 Connector |
| Dimensions | 1432 mm L x 35 mm W x 40 mm H | Material | Painted Aluminum, PMMA Lens |
| Degree of Protection | IP65 | Temperature Rating | 0 - 50 °C |
| Environmental Conditions | -25 to 55 °C Storage | Standards | CE, cULus Listed |
| Application | Processing and Packaging Machinery, Food, Cosmetic, Pharmaceutical, Electronics and Mechanical Assembling, Conveyor Lines and Sorting Systems |
