DATALOGIC USA INC DATASENSING 958101000 AS1-LD-HR-010-J = Dimensional array 100mm. long

Manufacturer #:958101000

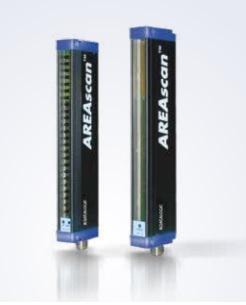

AREAscan™ high-resolution detection photoelectric light grid. Crossed beam area sensors. 100 mm controlled height. Optical synchronism. Scan Mode input. 2 m Operating distance. Applications are processing lines, food, cosmetic and pharmaceutical, electronics and mechanical assembling, conveyor lines and sorting systems.


Brand Name Datalogic Item Name Photoelectric Sensor
Type Slim Profile Voltage Rating 24 VDC
Sensing Distance 0.3 - 2.1 m Output 100 mA
Light Source Infrared LED Connection Type M12 Connector
Response Time 2.75 - 8 Millisecond Material Aluminum Housing, PMMA Optics
Series/Model AS1 Series/AS1-LD-HR-010-J Sensing Mode Crossed Beam
Frequency Rating 55 Hz Circuit Type 1 PNP
Indicator Type LED Degree of Protection IP65
Temperature Rating 0 - 50 °C Environmental Conditions -25 to 70 °C Storage Temperature, 15 - 95% Uncondensed Humidity
Dimensions 150.1 mm L x 43 mm W x 22 mm H Standards CE Certified
Application Object Presence/Absence Control, Object Counting, Object Passage Control on Conveyor Lines
