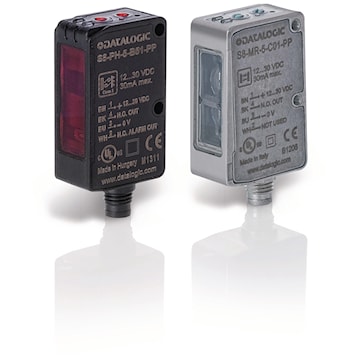

DATALOGIC USA INC DATASENSING 950801060 Photoelectric Sensor Coaxial, Compact, High Performance

Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:950801060

Description

The miniature S8 sensors offer excellent detection performances, usually associated with sensors that have larger dimensions and higher prices. The S8 series is able to solve the most critical sensor applications, a solution for packaging lines, food and beverage industries, automotive, test and assembling machines and electronic plants. Compact size and high performance for the most challenging detection applications. Laser models with coaxial polarized retroreflex and background suppression are available. Base models with LED emission are also offered featuring polarized retroreflex, diffuse proximity, background suppression, shiny, coaxial polarized retroreflex for transparents and RGB contrast sensors.

Specifications

Brand Name Datalogic Item Name Photoelectric Sensor
Type Coaxial, Compact, High Performance Voltage Rating 12 - 30 VDC
Emitter Light Source Light/Dark Sensing Distance 9 mm
Output 100 mA Light Source 465 nm Blue/520 nm Green/630 nm Red
Connection Type 4-Pin M8 Connector Response Time 50 Microsecond
Material ABS Housing, Polycarbonate Lens Series/Model S8/S8-PR-5-W03-PP
Sensing Mode Contrast/RGB LED Frequency Rating 10 kHz
Circuit Type PNP Indicator Type Yellow LED (Output), Green LED (Power On)
Degree of Protection IP67 Mounting Bracket
Temperature Rating -10 to 55 °C Dimensions 14 mm L x 42 mm W x 25 mm H
Standards CE Marked, cULus Listed Application For Processing and Packaging Machinery, Beverage/Food/Cosmetics/Pharmaceutical Industries and Electronics Assembling
