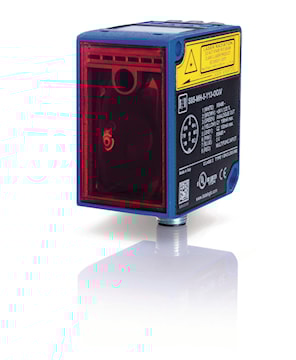

DATALOGIC USA INC DATASENSING 951511020 Distance Sensor Advanced
dat951511020
DATALOGIC USA INC DATASENSING 951511020 Distance Sensor Advanced
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:951511020
Description
Laser distance sensor for precise measurement up to 20 m with millimetric resolution and repeatability through the time of flight technology. Direct Time Of Flight Technology. Class 2 visible red LASER for an easy alignment with the target. Measuring range up to 10 m or 20 m in the advanced model. 1 mm resolution, 7 mm accuracy, 1 mm repeatability. 4-20 mA or 0 to 10 V scalable analog output and 2 digital outputs. RS485 serial interface in the advanced model. Standard M12 connector. IP67 Industrial metal housing. Suitable for automated warehousing, processing and packaging machinery, industrial vehicles, automotive.
Specifications
| Brand Name | Datalogic | Item Name | Distance Sensor |
| Type | Advanced | Voltage Rating | 24 V |
| Sensing Distance | 20 m | Output | 4 - 20 mA, 0 - 10 V |
| Light Source | 658 nm Visible Red Laser | Connection Type | 8-Pole M12 Connector |
| Response Time | 15 - 30 Millisecond | Material | Zamak 13 Zinc Alloy Housing, PMMA Lens |
| Series/Model | S85/S85-MH-5-Y13-OOIVY | Frequency Rating | 10 - 55 Hz |
| Circuit Type | NPN/PNP, Analog, RS48 | Indicator Type | Yellow LED, Green/Red LED (Power/Out of Range), Multi-Display |
| Degree of Protection | IP67 | Temperature Rating | -15 to 50 °C |
| Environmental Conditions | -25 to 70 °C Storage | Dimensions | 60 mm L x 62 mm W x 37 mm H |
| Standards | CE Marked, cULus Listed | Application | For Automated Warehousing, Processing and Packaging Machinery, Industrial Vehicles and Automotive |
