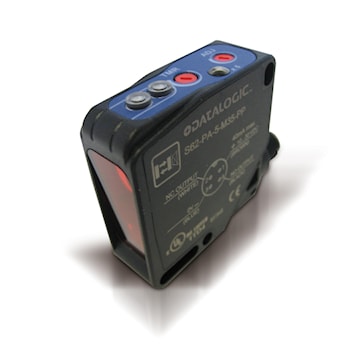

DATALOGIC USA INC DATASENSING 956201831 S62-PA-5-M01-PP = Bgs plastic axial pnp no/nc -

Manufacturer #:956201831


The S62 photoelectric sensor series, developed in the 50 x 50 x 18 mm compact plastic housing, offers the maximum performances in the main optic detection functions for industrial automation. Sensor features Background suppression (short distance) optic function, LED (red 640 nm), M12 connector with PNP output. Suitable for processing and packaging machinery, conveyor lines and material handling applications.


Brand Name Datalogic Item Name Photoelectric Sensor
Type Compact, Universal Voltage Rating 10 - 30 VDC
Emitter Light Source Mono-Turn Light/Dark Sensing Distance 30 - 300 mm
Output 100 mA Light Source Red 640 nm LED
Connection Type M12 Connector Response Time 500 Microsecond
Material ABS Housing, Polycarbonate Lens/PMMA Window Series/Model S62 Series/S62-PA-5-M01-PP
Sensing Mode Background Suppression Frequency Rating 1 kHz
Circuit Type PNP Indicator Type Yellow LED
Degree of Protection IP67 Temperature Rating -10 to 55 °C
Environmental Conditions -20 to 70 °C Storage Temperature Dimensions 50 x 50 x 18 mm
Standards CE Certified, cULus Listed Application Processing and Packaging Machinery, Conveyor Lines, Material Handling
