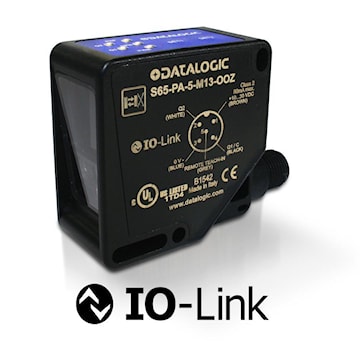

DATALOGIC USA INC DATASENSING 956251160 S65-PA-5-M13-OO = TOF Background suppr. 5m - NPN
dat956251160
DATALOGIC USA INC DATASENSING 956251160 S65-PA-5-M13-OO = TOF Background suppr. 5m - NPN
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:956251160
Description
M12 5-poles NPN/PNP output, distance sensor. Long range background suppression detection up to 5 m. Cost effective solution for precise and reliable detection. Risk-free Infrared LED emission and embedded green LED pointer. Two independent fully programmable outputs. Rugged plastic housing in compact 50 x 50 x 24 mm format. Suitable for presence of all medium and large sized objects on conveyors, critical object detection in front of problematic background, positioning tasks in palletizing, Position limiter for deck and robot in automotive manufacturing, collision prevention limit switch for AGV applications, checking filling level for liquid and objects.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Distance | Voltage Rating | 24 VDC |
| Emitter Light Source | Dark/Light | Sensing Distance | 5 m |
| Output | 100 mA | Light Source | Infrared LED |
| Connection Type | M12 5 Pole Connector | Response Time | 8.5 Millisecond |
| Material | ABS Housing, PMMA Front Side | Series/Model | S65-M Series/S65-PA-5-M13-OO |
| Sensing Mode | Background Suppression | Frequency Rating | 65 Hz |
| Circuit Type | Two Programmable Outputs (PNP/NPN) | Indicator Type | Green LED (Power and Active Setup), Yellow LED (Output) |
| Degree of Protection | IP67 | Dimensions | 50 x 50 x 25 mm |
| Standards | CE Certified, cULus Listed, UL 508 Listed | Application | Presence of All Medium and Large Sized Objects on Conveyors, Critical Object Detection in Front of Problematic Background, Positioning Tasks in Palletizing, Position Limiter for Deck and Robot in Automotive Manufacturing, Collision Prevention Limit Switch for AGV Applications, Checking Filling Level for Liquid and Objects |
