Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:952301270
Description

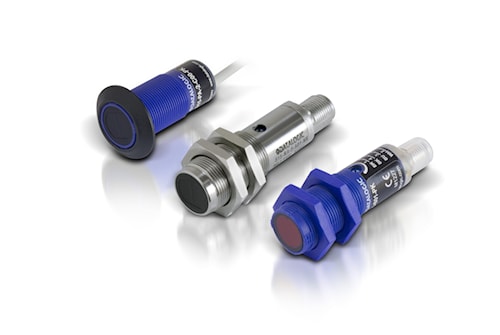

The tubular S15 photoelectric sensor basic line offering Background suppression optic function, plastic housing, M12 connector with PNP output. Suitable for reduced-space applications. IP69K mechanical protection.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Tubular, 4 Turn Setting | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Light | Sensing Distance | 40 - 120 mm |
| Output | 100 mA | Light Source | Red 660 nm LED |
| Connection Type | M12 Connector | Response Time | 1 Millisecond |
| Material | ABS Housing, Plastic PMMA Lens | Series/Model | S15 Series/S15-PA-5-M01-PK |
| Sensing Mode | Background Suppression | Frequency Rating | 500 Hz |
| Circuit Type | PNP | Indicator Type | Yellow LED |
| Degree of Protection | IP65/IP67/IP69K | Temperature Rating | -25 to 55 °C |
| Environmental Conditions | -25 to 70 °C Storage Temperature | Dimensions | 18 mm dia x 71.9 mm L |
| Standards | CE Certified, cULus Listed, Ecolab Certified, ATEX II 3DG |
