Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:95B010351
Description

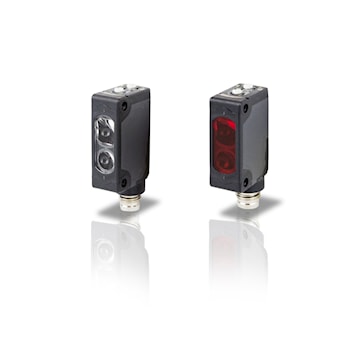

The S3Z sensor line offers most advanced performances in a worldwide recognized standard miniature housing. The miniature S3Z series is a photoelectric sensor offering light mode, Background suppression optic function, LED emission, M8 connector and PNP output.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Tubular, Miniature Asian Style | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Light | Sensing Distance | 50 - 250 mm |
| Output | 100 mA | Light Source | Red 670 nm LED |
| Connection Type | M8 Connector | Response Time | 1 Millisecond |
| Material | PC/PBT | Series/Model | S3Z Series/S3Z-PR-5-M01-PL |
| Sensing Mode | Background Suppression | Frequency Rating | 500 Hz |
| Circuit Type | PNP | Indicator Type | Yellow LED Output, Green LED Stability |
| Degree of Protection | IP67 | Temperature Rating | -25 to 55 °C |
| Environmental Conditions | -40 to 70 °C Storage Temperature | Dimensions | 11 x 31 x 19 mm |
| Standards | CE Certified, cULus Listed | Application | Processing and Packaging Machinery, Electronics Assembling |
