dat956101050

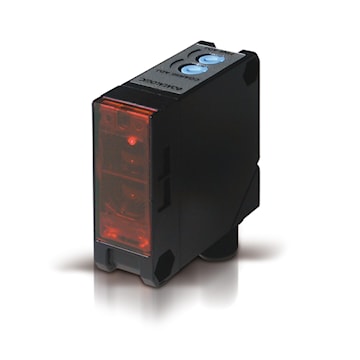

DATALOGIC USA INC DATASENSING 956101050 Photoelectric Sensor Compact
dat956101050
DATALOGIC USA INC DATASENSING 956101050 Photoelectric Sensor Compact
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:956101050
Description
Multivoltage 50 x 50 mm compact sensor. Free voltage VAC/VDC models with relay output. 10 to 30 VDC model with transistor output. Standard cable or M12 4-pole connection. Suitable for automatic machines, packaging lines, transportation lines, automatic warehouses.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Compact | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Light/Dark | Sensing Distance | 10 - 2000 mm |
| Output | 100 mA | Light Source | 660 nm Red LED |
| Connection Type | 4-Pole M12 Connector | Response Time | 2 Millisecond |
| Material | ABS Housing, PMMA Lens | Series/Model | S6/S6R-5-C200-N |
| Sensing Mode | Diffuse | Frequency Rating | 250 Hz |
| Circuit Type | NPN-NO/NC | Indicator Type | Red LED |
| Degree of Protection | IP65 | Temperature Rating | -25 to 55 °C |
| Environmental Conditions | -25 to 70 °C | Dimensions | 50 mm L x 50 mm W x 18 mm H |
| Standards | CE Marked, cULus Listed | Application | For Automatic Machines, Packaging Lines, Transportation Lines, Automatic Warehouses |
