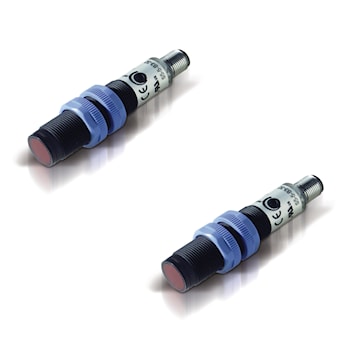

DATALOGIC USA INC DATASENSING 952051940 Photoelectric Sensor Tubular, Axial
dat952051940
DATALOGIC USA INC DATASENSING 952051940 Photoelectric Sensor Tubular, Axial
Manufacturer:DATALOGIC USA INC DATASENSING
Manufacturer #:952051940
Description
The tubular S5 series is a photoelectric sensor, Axial optic version features dark mode, M12 connector, PNP 3-wire connection of 10 to 30 VDC and Fixed focus proximity function. A red LED indicating the output status is visible on the bottom side of the sensor. The versions with trimmer adjustment present also a green LED signaling the switching stability according to the received signal's intensity. The rugged ABS housing always guarantees IP67 protection.
Specifications
| Brand Name | Datalogic | Item Name | Photoelectric Sensor |
| Type | Tubular, Axial | Voltage Rating | 10 - 30 VDC |
| Emitter Light Source | Light/Dark | Sensing Distance | 15 mm with 1 mm Spot |
| Output | 100 mA | Light Source | 880 nm Infrared LED |
| Connection Type | 4-Pole M12 Connector | Response Time | 500 Microsecond |
| Material | ABS Housing, PMMA Lens | Series/Model | S5/S5-5-D50-92 |
| Sensing Mode | Fixed Focus Proximity | Frequency Rating | 1 kHz |
| Circuit Type | NPN/PNP | Indicator Type | Red LED (Output), Green LED (Stability) |
| Degree of Protection | IP67 | Mounting | M18 Tubular |
| Temperature Rating | -25 to 55 °C | Environmental Conditions | -25 to 70 °C Storage |
| Dimensions | 55 in L | Standards | CE Marked, cULus Listed |
| Application | For Ceramics, Beverage and Bottling, Transportation and Packaging Lines |
