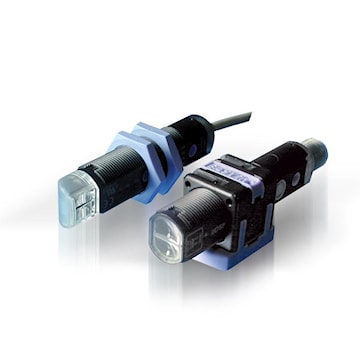

DATALOGIC USA INC DATASENSING 952701411 Photoelectric Sensor Tubular, Radial

Manufacturer #:952701411


The tubular S51 series is a photoelectric sensor, Radial optic version features Medium diffuse proximity function, plastic housing, M12 connector and PNP output. Extended range of standard "One for All" photoelectric tubular M18 sensors. Available in DC version offering excellent solutions for all industrial applications, presenting a flat plastic housing with 2 fixing holes to guarantee excellent mounting flexibility. Suitable for processing and packaging machinery, conveyor lines, material handling, ceramics intralogistics and automated warehousing applications.


Brand Name Datalogic Item Name Photoelectric Sensor
Type Tubular, Radial Voltage Rating 10 - 30 VDC
Emitter Light Source Light/Dark Sensing Distance 0 - 450 mm
Output 100 mA Light Source 880 nm Infrared LED
Connection Type M12 Connector Response Time 1 Millisecond
Material PBT Housing, PMMA Lens Series/Model S51/S51-PR-5-C01-PK
Sensing Mode Diffuse Frequency Rating 500 Hz
Circuit Type PNP-NO/NC Indicator Type Yellow LED (Output), Green LED (Stability)
Degree of Protection IP67 Mounting M18 Flat Universal
Temperature Rating -25 to 55 °C Environmental Conditions -25 to 70 °C
Dimensions 18 mm dia x 79 mm L Standards CE Marked, cULus Listed
Application Processing and Packaging Machinery, Conveyor Lines, Material Handling, Ceramics Intralogistics, Automated Warehousing
