DATALOGIC USA INC DATASENSING G5210532 S5-5-C10-32 = Proximityplastic vdc axial dark/l

Manufacturer #:G5210532

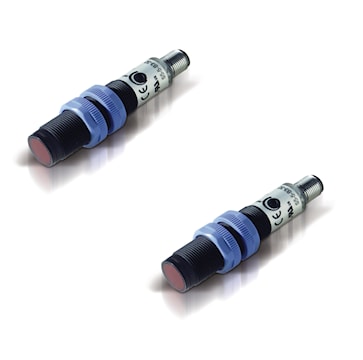

The tubular S5 series is a photoelectric sensor, Axial optic version features M12 connector with 4-wire cable connection of 10 to 30 VDC and Short distance diffuse proximity function. A red LED indicating the output status is visible on the bottom side of the sensor. The versions with trimmer adjustment present also a green LED signaling the switching stability according to the received signal's intensity. The rugged ABS housing always guarantees IP67 protection.


Brand Name Datalogic Item Name Photoelectric Sensor
Type Tubular Voltage Rating 10 - 30 VDC
Emitter Light Source Dark/Light Sensing Distance 1 - 10 cm
Output 150 mA Light Source Infrared LED 880 nm
Connection Type M12 Connector Material ABS Housing, PMMA Plastic Lens
Series/Model S5 Sensing Mode Short Distance Diffuse Proximity
Frequency Rating 25 Hz Circuit Type PNP/NPN
Indicator Type Red LED Degree of Protection IP67
Temperature Rating -25 to 55 °C Environmental Conditions -25 to 70 °C Storage Temperature
Standards CE Certified Application Ceramics, Beverage and Bottling, Transportation Lines, Packaging Lines
