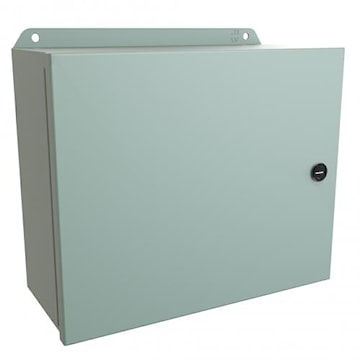

HAMMOND MANUFACTURING EJ10125 Eclipse Junior Series Enclosure with Panel Mild Steel NEMA 3R, 4, 13, IP66 254 mm H x 305 mm W x 127 mm D Gray

Manufacturer #:EJ10125


Junction box type 4 with continuous hinge door with quarter turn latches. 16 gauge mild steel enclosure and cover. Smooth continuously welded seams without knockouts and cutouts or holes. 14 gauge welded brackets provide for enclosure mounting. Includes removable 14 gauge galvanized inner panel. ANSI 61 grey recoatable powder coating. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.


Brand Name Hammond Manufacturing Sub Brand Eclipse Junior Series
Item Name Enclosure with Panel Type Gangable, Single Door, Two Lock
Width 305 mm Depth 127 mm
Height 254 mm Cover Type Continuous Hinged
Gauge 16 NEMA Rating NEMA 3R, 4, 13, IP66
Series Eclipse Junior Mounting Type Wall
Material Mild Steel Finish Powder Coated
Color Gray Standards CE, CSA Certified, UL Listed
Application Designed to Enclose Electrical or Electronic Equipment and Protect Against Harsh, Industrial Environments UPC 623980357751
