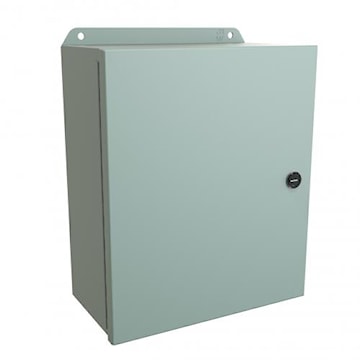

HAMMOND MANUFACTURING EJ12105 Eclipse Junior Series Junction Box Mild Steel NEMA 3R, 13, 4, IP66 305 mm H x 254 mm W x 127 mm D Gray

Manufacturer #:EJ12105


Junction box type 4 with continuous hinge door with quarter turn latches. 16 gauge mild steel enclosure and cover. Smooth continuously welded seams without knockouts and cutouts or holes. 14 gauge welded brackets provide for enclosure mounting. Includes removable 14 gauge galvanized inner panel. ANSI 61 grey recoatable powder coating. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.


Brand Name Hammond Manufacturing Sub Brand Eclipse Junior Series
Item Name Junction Box Type Gangable, Single Door, Single Lock
Width 254 mm Depth 127 mm
Height 305 mm NEMA Rating NEMA 3R, 13, 4, IP66
Mounting Type Wall Material Mild Steel
Finish Powder Coated Color Gray
Includes Removable 14 ga Inner Panel Standards CE, CSA Certified, UL Listed
Application For Outdoor Use UPC 623980357775
