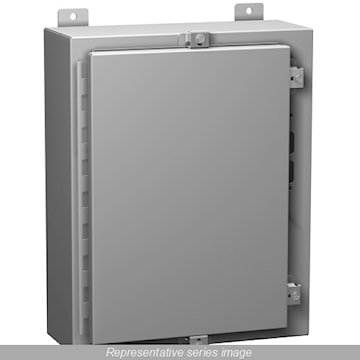

HAMMOND MANUFACTURING 1447SN4B8 1447S N4 Series Disconnect Enclosure Mild Steel NEMA 4 24 in H x 21.38 in W x 8 in D Gray
ham1447sn4b8
HAMMOND MANUFACTURING 1447SN4B8 1447S N4 Series Disconnect Enclosure Mild Steel NEMA 4 24 in H x 21.38 in W x 8 in D Gray
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1447SN4B8
Description
N4 Disconnect Encl w/panel - 24 x 21.38 x 8 - Steel/Gray
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1447S N4 Series |
| Item Name | Disconnect Enclosure | Type | Type 4 Mild Steel Wallmount Disconnect Enclosure |
| Width | 21.38 in | Depth | 8 in |
| Height | 24 in | Cover Type | Continuous Hinge |
| Gauge | 14 ga | NEMA Rating | NEMA 4 |
| Series | 1447S N4 | Mounting Type | Wall |
| Material | Mild Steel | Color | Gray |
| Includes | Removable 12 ga Inner Panel | Standards | CE, CSA Certified, UL Listed |
| Application | Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door. | UPC | 623980410265 |
Packages
| 1 - rarr_unit_1 |
