HAMMOND MANUFACTURING 1418ZY24 72 X 72 X 24NEMA12 13 2 DOOR 1 ACCS
Description

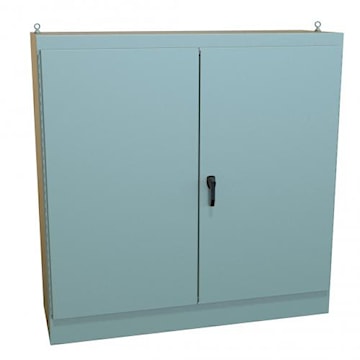

Freestanding enclosure type 12 with two door constructed of 12 gauge mild steel. ANSI 61 grey powder coating on the outside and with white powder coating on the inside. Continuous hinge door with handle. Lifting eyes provide for easy enclosure handling. Doors are secured with a three point latch and operated with a key locking automotive type handle. Designed for house electrical, electronic, hydraulic or pneumatic controls with provision for panel mounting or rack mounting of equipment. Provides a degree of protection from falling dirt, dust, oil and water.
Specifications
Brand Name | Hammond Manufacturing | Sub Brand | 1418 FS Series |
Item Name | Enclosure | Type | Double Door, Single Lock, Gangable |
Width | 72 in | Depth | 24 in |
Height | 72 in | Cover Type | Continuously Welded |
Gauge | 12 ga | NEMA Rating | NEMA 12, IP54 |
Series | 1418 FS | Mounting Type | Free-Standing |
Material | Mild Steel | Finish | Smooth, Powder Coated |
Color | Gray | Includes | Mounting Plate |
Standards | CE, CSA Certified, UL Listed, RoHS Compliant | Application | For Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures |
UPC | 623980376400 |
