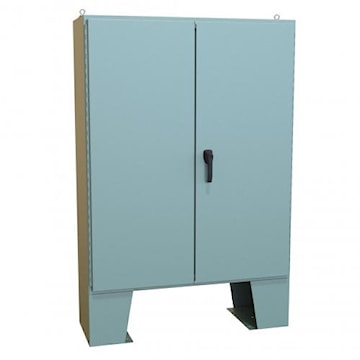

HAMMOND MANUFACTURING 1422B16F 1422 FM Series Enclosure with Panel Mild Steel NEMA 12, IP54 1527 mm H x 1221 mm W x 424 mm D Gray

Manufacturer #:1422B16F
Documents Documents


Floor mount enclosure type 12 with two door constructed of 12 gauge mild steel, 10 gauge mild steel panel. ANSI 61 grey powder coating on the outside with white powder coating on the inside. 12 inch floor stands are welded to the enclosure for with feet enclosure. Doors are secured with a three point latch and operated with a key locking automotive type handle. Latch rods are equipped with rollers for easier door closing. A removable 10 gauge inner panel is included. Panel supports are provided. Designed for house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.


Brand Name Hammond Manufacturing Sub Brand 1422 FM Series
Item Name Enclosure with Panel Type Double Door, One Lock
Width 1221 mm Depth 424 mm
Height 1527 mm Cover Type Continuous Hinge Door with Handle
Gauge 14 NEMA Rating NEMA 12, IP54
Series 1422 FM Mounting Type Floor
Material Mild Steel Finish Powder Coated
Color Gray Includes Mounting Plate
Standards UL 508A Type 12, CSA Type 12, Complies with NEMA Type 12, IEC 60529, IP54, CE, RoHS Compliant Application House Electrical, Electronic, Hydraulic or Pneumatic Controls and Instruments, Provides a Degree of Protection from Falling Dirt, Dust, Oil and Water
UPC 623980399409
