HAMMOND MANUFACTURING 1422VX12 42 X 60 X 12X 12IN NEMA12 HING

Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1422VX12
Documents Documents

Description

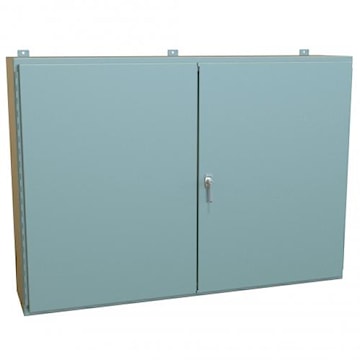

Wall mount enclosure type 12 with two door constructed of 12 gauge steel, 10 gauge steel panel. Continuous hinge door with handle. ANSI 61 grey powder coating on the outside with white powder coating on the inside. Doors are secured with a three point latch and operated with a key locking automotive type handle. Oil resistant gaskets are permanently secured. Include a 12 gauge inner panel. Collar studs are provided for mounting inner panels. Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.

Specifications

Brand Name Hammond Mfg. Sub Brand 1422 Series
Type N12 Dbl Door Wallmount Encl w/panel Width 60.06
Depth 12.69 Height 42.13
NEMA Rating 12 Material Steel
Standards CSA, UL, CE Application Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.
UPC 623980410241
