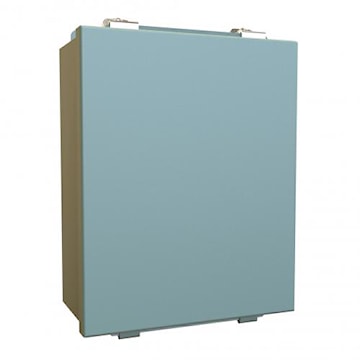

Junction box type 12 with 16 or 14 gauge mild steel enclosure, 14 gauge mild steel covers, lift-off cover with clamps. ANSI 61 grey recoatable powder coating. Includes removable 14 gauge inner panel. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.
ham1414i
HAMMOND MANUFACTURING 1414I 10 X 8 X 413 CLAMP LIFT OFF COV
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1414I
Description
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1414 Series |
| Item Name | Junction Box with Panel | Type | Single Door, Two Lock, Gangable |
| Width | 203 mm | Depth | 102 mm |
| Height | 254 mm | Cover Type | Lift Off Cover |
| Gauge | 16 or 14 ga | NEMA Rating | NEMA 12, 13 |
| Series | 1414 | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Includes | Mounting Plate |
| Standards | UL Listed, CSA, CE Certified, IP54 Rated | Application | Used as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Provides a Degree of Protection from Falling Dirt, Dust, Oil and Water |
| UPC | 623980342405 |
