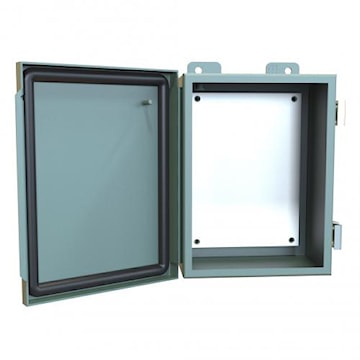

Junction box type 12 with 16 or 14 gauge mild steel enclosure, 14 gauge mild steel covers. Continuous hinge door with clamps. ANSI 61 grey recoatable powder coating. Includes removable 14 gauge inner panel. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides a degree of protection from falling dirt, dust, oil and water.
ham1414phg
HAMMOND MANUFACTURING 1414PHG 8 X 6 X 3.5NEMA12 13 HING CLAMP COV
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1414PHG
Description
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1414 PH Series |
| Item Name | Junction Box with Panel | Type | Single Door, Two Lock, Gangable |
| Width | 152 mm | Depth | 89 mm |
| Height | 203 mm | Cover Type | Hinged |
| Gauge | 16 or 14 ga | NEMA Rating | NEMA 12, 13 |
| Series | 1414 PH | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Includes | Mounting Plate |
| Standards | UL Listed, CSA, CE Certified, IP54 Rated | Application | Used as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Provides a Degree of Protection from Falling Dirt, Dust, Oil and Water |
| UPC | 623980348704 |
