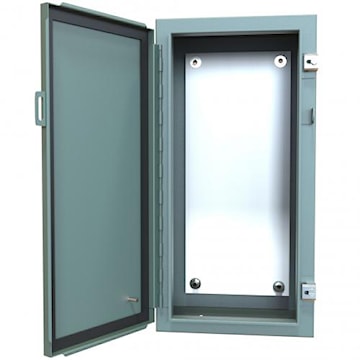

Wall mount enclosure type 12 constructed of 14 gauge mild steel door and enclosure with ANSI 61 grey powder coating on the outside, white powder coating on the inside. Continuous hinge door with clamps. Door is secured with easily operated stainless steel clamps. Provision for padlocking. A removable 12 gauge inner panel is included. Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments. Provides a degree of protection from falling dirt, dust, oil and water.
ham1418ar8
HAMMOND MANUFACTURING 1418AR8 24 X 12 X 8NEMA12 13 HING CLAMP COV
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1418AR8
Description
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1418 Series |
| Item Name | Enclosure with Panel | Type | N12, Single Door, Three Lock, Gangable |
| Width | 305 mm | Depth | 203 mm |
| Height | 610 mm | Cover Type | Continuous Hinge Door with Clamp |
| Gauge | 14 ga Door | NEMA Rating | NEMA 12 |
| Series | 1418 | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | ANSI 61 Gray | Standards | UL Listed, CSA, CE Certified, IP54 |
| Application | Designed to House Electrical, Electronic, Hydraulic or Pneumatic Controls and Instruments | UPC | 623980363400 |
Packages
| 1 - rarr_unit_1 |
