Junction box type 4 with 16 or 14 gauge mild steel enclosure, 14 gauge mild steel covers. Continuous hinge door with clamps. ANSI 61 grey recoatable powder coating. Includes removable 14 gauge inner panel. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection.
ham1414n4phg

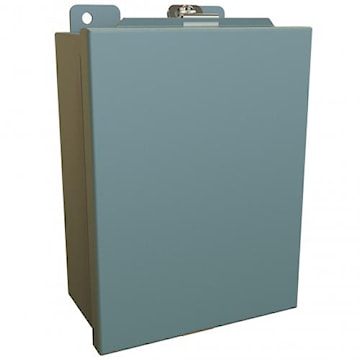

HAMMOND MANUFACTURING 1414N4PHG N4 J BOX, HINGE COVER w/PANEL-8x6x3.5-STEEL/GRAY
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1414N4PHG
Description
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1414 N4 PH Series |
| Item Name | Junction Box with Panel | Type | Single Door, Two Lock, Gangable |
| Width | 152 mm | Depth | 89 mm |
| Height | 203 mm | Cover Type | Hinged |
| Gauge | 16 or 14 ga | NEMA Rating | NEMA 3R, 13, 4 |
| Series | 1414 N4 PH | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Includes | Mounting Plate |
| Standards | UL Listed, CSA, CE Certified, IP66 Rated | Application | Used as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures |
| UPC | 623980345604 |
