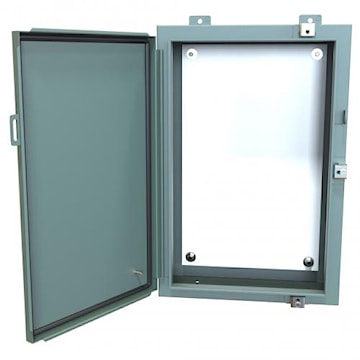

Wall mount enclosure type 4 constructed of 14 gauge mild steel door and enclosure with ANSI 61 grey powder coating. Continuous hinge door with clamps. Smooth, continuously welded seams without knockouts, cutouts or holes. Door is secured with easily operated stainless steel clamps. Provision for padlocking. A removable 12 gauge inner panel is included. Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection.
ham1418n4h6
HAMMOND MANUFACTURING 1418N4H6 1418 N4 Series Enclosure with Panel Mild Steel NEMA 3R, 4, 13, IP66 610 mm H x 406 mm W x 152 mm D Gray
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1418N4H6
Description
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1418 N4 Series |
| Item Name | Enclosure with Panel | Type | Gangable, Single Door, Two Lock |
| Width | 406 mm | Depth | 152 mm |
| Height | 610 mm | Cover Type | Continuous Hinged |
| Gauge | 14 | NEMA Rating | NEMA 3R, 4, 13, IP66 |
| Series | 1418 N4 | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Standards | CE, CSA Certified, UL Listed |
| Application | For Use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures | UPC | 623980380209 |
