HAMMOND MANUFACTURING 1418N4J8 1418 N4 Series Enclosure with Panel Mild Steel NEMA 3R, 13, 4, IP66 610 mm H x 610 mm W x 203 mm D Gray
ham1418n4j8
HAMMOND MANUFACTURING 1418N4J8 1418 N4 Series Enclosure with Panel Mild Steel NEMA 3R, 13, 4, IP66 610 mm H x 610 mm W x 203 mm D Gray
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:1418N4J8
Description

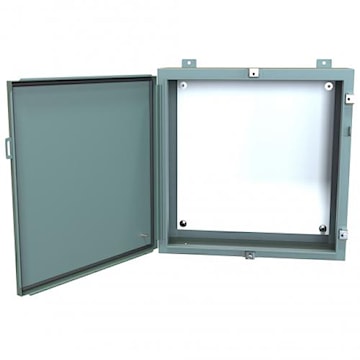

Wall mount enclosure type 4 constructed of 14 gauge mild steel door and enclosure with ANSI 61 grey powder coating. Continuous hinge door with clamps. Smooth, continuously welded seams without knockouts, cutouts or holes. Door is secured with easily operated stainless steel clamps. Provision for padlocking. A removable 12 gauge inner panel is included. Provides protection where equipment may be hosed down or otherwise be very wet or in outdoor applications for full weather protection.
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | 1418 N4 Series |
| Item Name | Enclosure with Panel | Type | Gangable, Single Door, Five Lock |
| Width | 610 mm | Depth | 203 mm |
| Height | 610 mm | NEMA Rating | NEMA 3R, 13, 4, IP66 |
| Series | 1418 N4 | Mounting Type | Wall |
| Material | Mild Steel | Finish | Powder Coated |
| Color | Gray | Includes | Mounting Plate |
| Standards | CSA Certified, UL Listed, CE | Application | For Outdoor |
| UPC | 623980380407 |
