hamen4sd242012gy
HAMMOND MANUFACTURING EN4SD242012GY 24 X 20 X 12NEMA4 QUART TURN 1 DOOR
hamen4sd242012gy
HAMMOND MANUFACTURING EN4SD242012GY 24 X 20 X 12NEMA4 QUART TURN 1 DOOR
Manufacturer:HAMMOND MANUFACTURING
Manufacturer #:EN4SD242012GY
Description

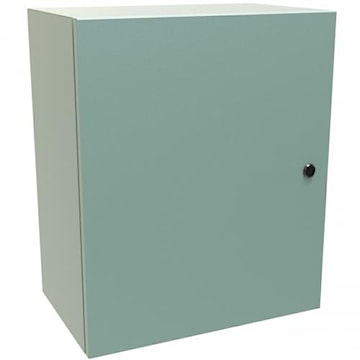

Wall mount enclosure type 4 constructed of 16 gauge mild steel with ANSI 61 smooth grey. Hinge door with quarter turn/handle. Smooth, continuously welded seams ground smooth. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Hinges are constructed from 304 stainless steel. Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall mount applications.
Specifications
| Brand Name | Hammond Manufacturing | Sub Brand | Eclipse Series |
| Item Name | Enclosure | Type | 1-Door, 1-Lock |
| Width | 20 in | Depth | 12 in |
| Height | 24 in | Gauge | 16 ga |
| NEMA Rating | NEMA 3R, 4, IP66 | Series | Eclipse |
| Mounting Type | Wall | Material | Mild Steel |
| Finish | Powder-Coated | Color | ANSI 61 Gray |
| Standards | CSA, CE Certified, UL Listed | Application | Designed to Enclose Electrical and/or Electronic Equipment and Protect Against Harsh, Industrial Environments for Wall mount Applications |
| UPC | 623980447339 |
Packages
| 1 - rarr_unit_1 |
