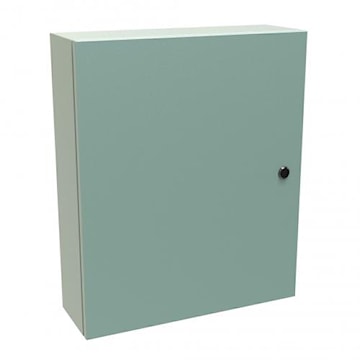

HAMMOND MANUFACTURING EN4SD24206GY Eclipse Series Enclosure Mild Steel NEMA 3R, 4, IP66 610 mm H x 508 mm W x 152 mm D Gray

Manufacturer #:EN4SD24206GY


Wall mount enclosure type 4 constructed of 16 gauge mild steel with ANSI 61 smooth grey. Hinge door with quarter turn/handle. Smooth, continuously welded seams ground smooth. Doors may be easily removed for modifications and are interchangeable. Seamless poured-in place gasket. Hinges are constructed from 304 stainless steel. Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wall mount applications.


Brand Name Hammond Manufacturing Sub Brand Eclipse Series
Item Name Enclosure Type Single Door, Two Lock
Width 508 mm Depth 152 mm
Height 610 mm Cover Type Hinged
Gauge 14/16 NEMA Rating NEMA 3R, 4, IP66
Series Eclipse Mounting Type Wall
Material Mild Steel Finish Powder Coated
Color Gray Standards CE, CSA Certified, UL Listed
Application Designed to Enclose Electrical or Electronic Equipment and Protect Against Harsh, Industrial Environments UPC 623980447124
