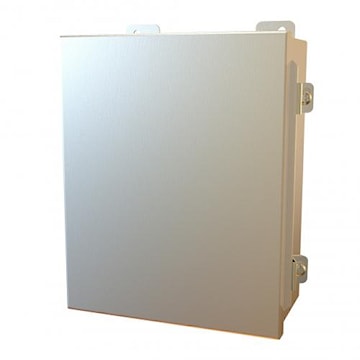

HAMMOND MANUFACTURING 1414N4PHSSI 1414 N4 PH SS Series Junction Box with Panel Stainless Steel NEMA 3R, 4X, 13, IP66 10 in H x 8 in W x 4 in D Stainless Steel
Description
Junction box type 4X constructed of 14 gauge 304 stainless steel. Continuous hinge door with clamps. Smooth brushed finish. Includes removable 14 gauge inner panel. Tapped studs are provided for mounting inner panels. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides protection where equipment may be hosed down or otherwise be very wet or in specific applications where corrosion may be a problem.
Specifications
Brand Name | Hammond Manufacturing | Sub Brand | 1414 N4 PH SS Series |
Item Name | Junction Box with Panel | Type | Gangable, Single Door, Two Lock |
Width | 8 in | Depth | 4 in |
Height | 10 in | Cover Type | Continuous Hinged |
Gauge | 14 | NEMA Rating | NEMA 3R, 4X, 13, IP66 |
Series | 1414 N4 PH SS | Mounting Type | Wall |
Material | Stainless Steel | Finish | Brushed/Grinded |
Color | Stainless Steel | Standards | CE, CSA Certified, UL Listed |
Application | For Use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures | UPC | 623980354606 |
