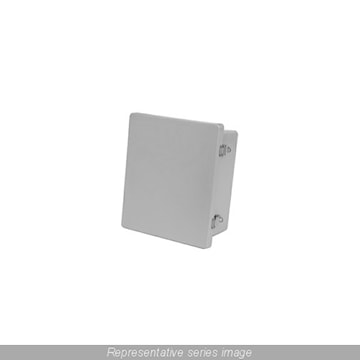

HAMMOND MANUFACTURING PJ12106L 13.076 X 11.201 X 6.125

Manufacturer #:PJ12106L


Junction box type 4X constructed of molded fiberglass polyester. Hinge door with snap latches. Enhanced UV inhibitors protect against outdoor weathering. 10-32 threaded brass inserts are provided for optional inner panel. Captive oil resistant gasket provides a positive seal. Stainless steel draw type snap latch door fasteners. Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Provides outstanding insulation and protection where equipment may be hosed down or be very wet.


Brand Name Hammond Manufacturing Sub Brand PJ Series
Item Name Enclosure with Hinge Cover Type 1-Door, 2-Lock, Gangable
Width 261 mm Depth 156 mm
Height 308 mm NEMA Rating 3R, 4X, 13, IP66
Series PJ Mounting Type Wall
Material Plastic/Fiberglass Polyester Color Light Gray
Standards CSA Certified, UL Listed Application Designed for Use as Instrument Enclosures, Electric, Hydraulic or Pneumatic Control Housings, Electrical Junction Boxes or Terminal Wiring Enclosures, Provides Outstanding Insulation and Protection Where Equipment May be Hosed Down or be Very Wet
UPC 623980951164
